Mosmatic Air System Boom – LU-W – 1.5″ Diameter – (Air Boom Straight For Wall Installation) – 5ft 3in – Bottom Connection – 60.302 Cheap Eastbay

Using Mosmatic Air-System Booms will not only keep your hoses off the ground, but save your customer from dragging wet and dirty hoses into their vehicles. Available in wall, floor or ceiling mount. For use with a vacuum or Mosmatic Air-Dry.

Note: Please pay special attention to the type of connection you need. The Air System Booms are offered in various connections depending on the size of the boom. Generally there are ceiling mount and wall mount styles with side, top or bottom connections.

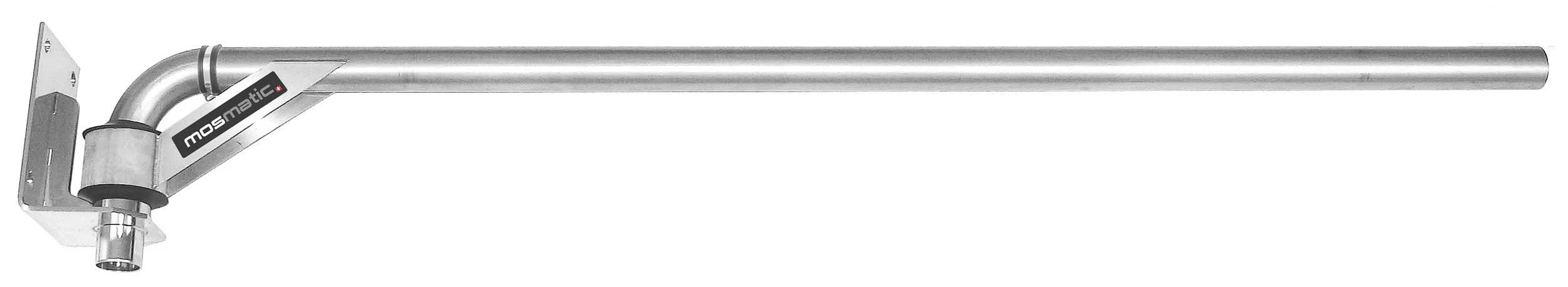

LU-W Air Boom 5ft 3in 60.302

Features:

• 180° or 360° smooth rotation
• Top, bottom or side port connections
• Can be combined with other Mosmatic booms
• For use with air dryers or vacuum systems
• Part No. Includes one boom

Specifications:

• Length: 5’3″
• Diameter: 1.5″
• Connection bottom
• Weight 17 lbs

Technical data:

• Pressure: 4000 psi (27.5 MPa)
• Temperature: 250°F
• Inlet (top & side): 3/8″ NPTF (other options available)
• Outlet: 3/8″ NPTF (other options available)
• Throughput medium: water, oil, air at pH 3-12

 Optional Items You May Want to Consider:

• Extension accessory – 1.5″ Diameter, 3′ 3″ Part # 60.304
• 90° Elbow – 1.5″ Diameter, Pipe Clamp Included Part # 60.305
