Measureman 2″ Forged Steel Gas Pressure Test Gauge Assembly, 3/4″ FNPT Connection, 0-30psi, /-3-2-3% Accuracy Free Shipping Factory Outlet

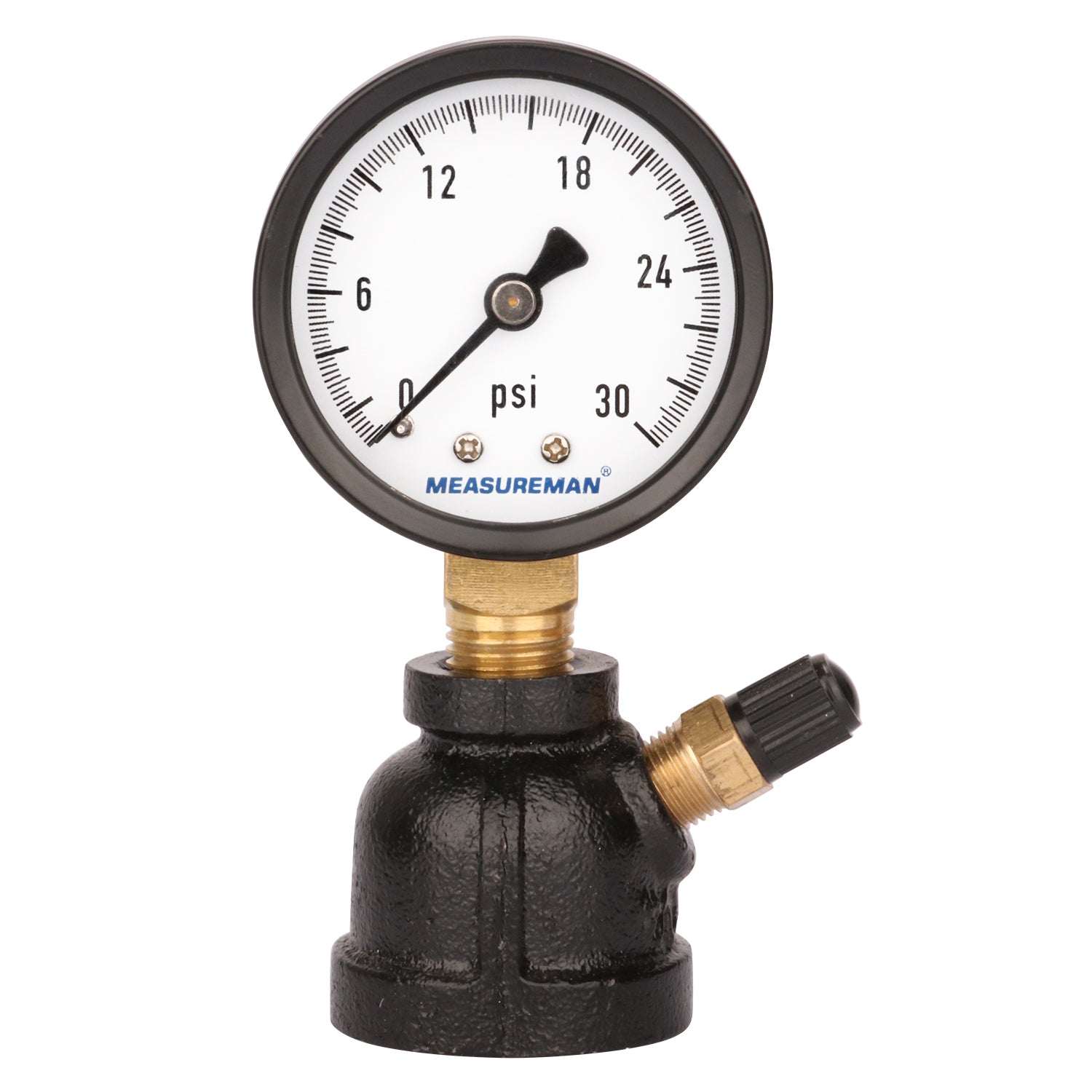

Measureman 2″ Forged Steel Gas Pressure Test  Gauge Assembly, 3/4″ FNPT Connection, 0-30psi,   +/-3-2-3% Accuracy

For pressure testing on the gas line etc
2″ dial size,  steel bell shape gas test body, 3/4” NPT female thread adapter attaches directly to gas line
Pressure range: 0-30psi single scale, 0.2psi navision
Black steel case, brass wetted parts, dry
Accuracy: +/-3-2-3%

This pressure gauge is designed for gas pressure measuring in the gas line etc
Dial size : 2″
Process connection : 3/4″ NPT female, Bell shape gas test body in forged steel
1/8″NPT for pressure release
Case : Black steel case and bezel
Window : Clear plastic<br>
Dial plate : aluminum, with pointer stop
Pointer : Aluminum, black, DIN style
Boudon tube : Copper alloy
Movement : Brass
Connection : Brass
IP class : IP43<br>
Accuracy : +/-3-2-3%
Pressure range : 0-30psi single scale, 0.2psi navision
Working temperature : -4 to 140 deg F/-20 to 60 deg C
Ambient temperature : 140 deg F/60 deg C maximum
