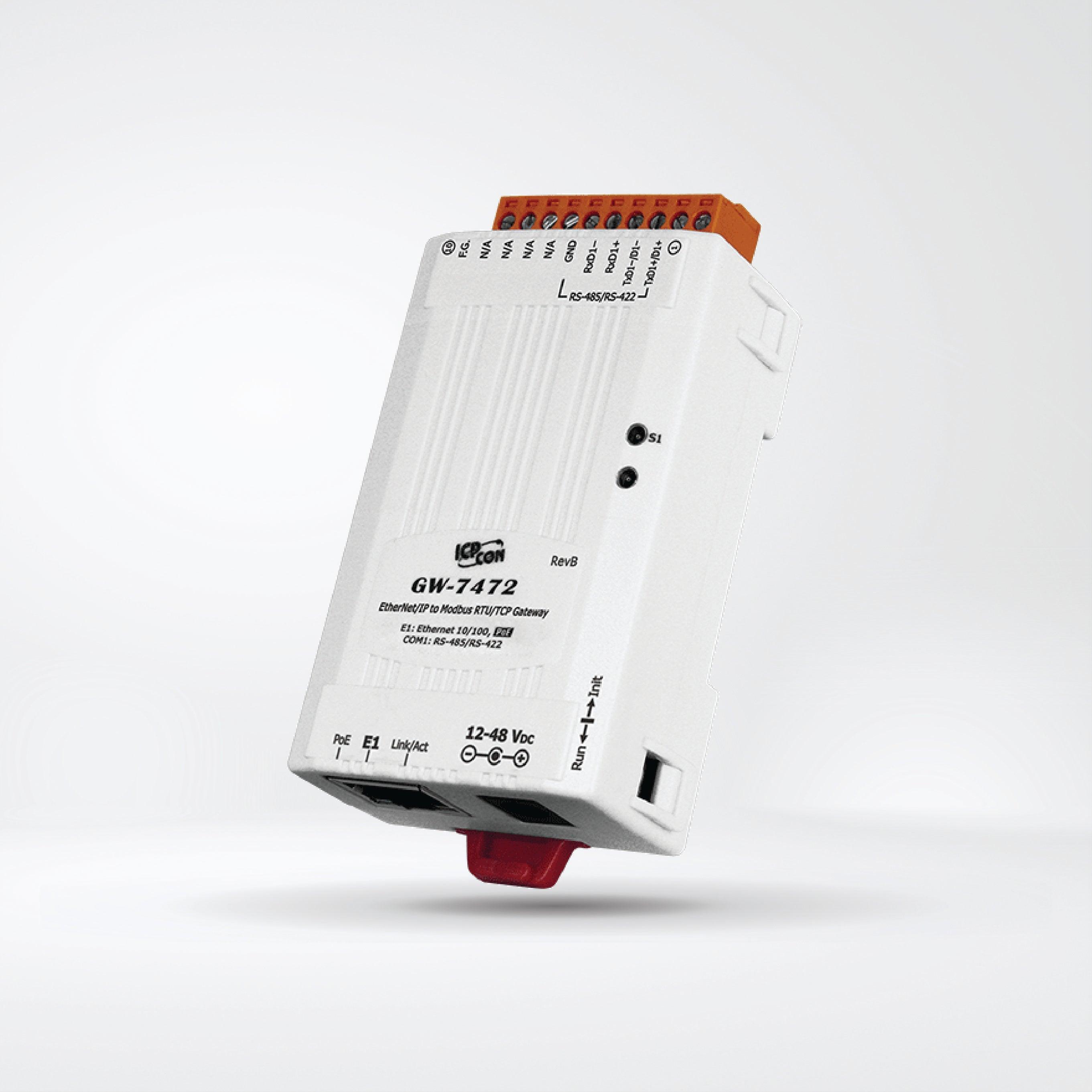

GW-7472 EtherNet/IP to Modbus RTU/TCP Gateway Recommend Cheap Pice

Features

– Easy firmware update via Ethernet
– Removable terminal block connector
– Tiny form-factor and low power consumption
– Ethernet Protocol: EtherNet/IP adapter
– Maximum number of connections for Explicit Messages: 6
– Maximum number of connections for Implicit Messages: 1
– Supported I/O connection methods:
     Transport and trigger: Exclusive-Owner, Cyclic
     Originator to Target Type: POINT2POINT
     Target to Originator Type: POINT2POINT, MULTICAST
– EtherNet/IP Input/Output command data size: maximum 500 bytes
– Modbus Protocol: Modbus RTU Master
– Maximum support 30 Modbus RTU commands
– Maximum support 10 Modbus TCP servers
– Maximum support 8 Modbus commands for each one Modbus TCP server
– Supported Modbus RTU Function Codes: 01,02,03,04,0F,10
– Maximum data size of one Modbus command: 240 bytes
