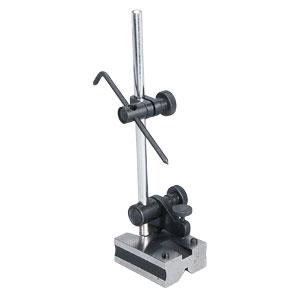

Groz Surface Marking Block | Vee Blocks Official Site Sale Online
Original price was: $79.48.$71.53Current price is: $71.53.
Description
– A fully hardened and ground base which serves as an accurate reference surface.
– A machined Vee groove in the base allows the gauge to be used conveniently on curved surfaces.
– A Vee groove at the front end allows the spindle to adjust to any angle above or below the base allowing it to be used as a height gauge and also as a depth gauge.
– Two retractable pins allow the gauge to be located against the edge of a surface plate or T-slot for linear work.
– A 1/4 (6.35 mm) hole in the spring loaded scriber holder allows a dial indicator to be attached conveniently making the gauge useful for checking flatness parallelism heights depths etc.
– Grooves on the side of the base allow for comfortable grip.
– Well tapered scriber for better sighting while working.
– The scriber tip is hardened to 55-60 HRC Base Dimensions: 2-3/16 x 1-5/8 (55 x 40mm) Spindle Length: 7 inch with extra 4 inch spindle (175mm with extra 100mm spindle) Scriber Length: 3 inch (75mm)
