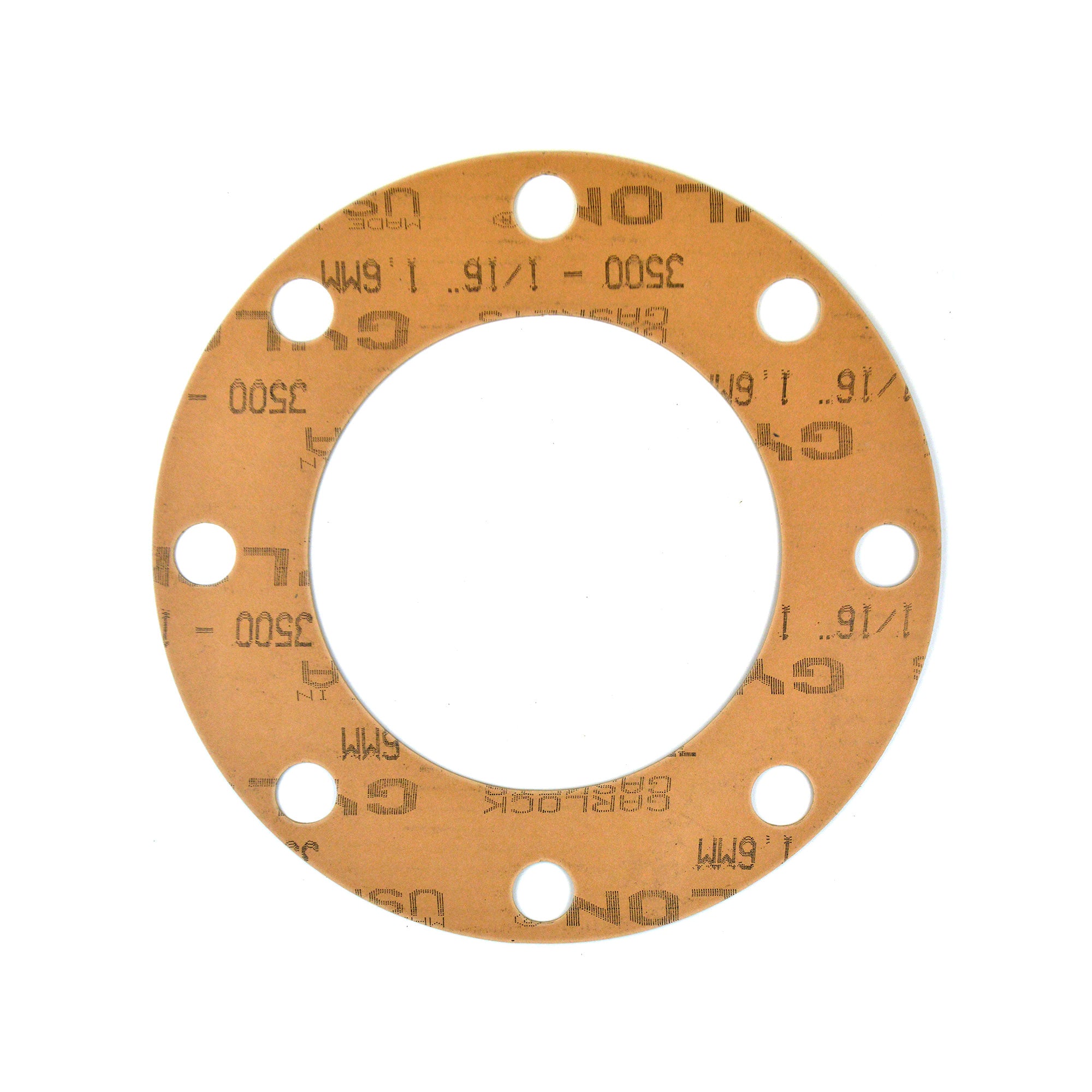

Garlock GYLON Style 3500 PTFE Gaskets Factory Outlet

For additional information on applications and usage, consult the experts at Gasket Supply.

Features and Benefits

The GYLON Style 3500 produces a tighter seal with an improved performance over conventional PTFE materials. With a unique manufacturing process that minimizes cold flow problems typical of skived and expanded PTFE sheets, the The GYLON Style 3500 reduces product loss and emissions with a reduced creep relaxation and excellent bolt torque retention. The GYLON Style 3500 can withstand a wide range of chemicals for extended service life in a wide variety of applications.

Specifications

• PTFE with silica
• Color: Fawn
• Available in Full face or ring
• Available for 150 lb or 300 lb
• Available in 1/16 inch or ⅛ inch
• Meets ABS, FDA and USDA specifications
• Min. Temperature: -450°F / -268°C
• Max. Temperature: 500°F / 260°C
• Max. Pressure: 1200 PSI / 83 bar
• Maximum PxT 1/16: 350,000 °F x PSIG / 12,000 bar x °C
• Maximum PxT 1/8: 250,000 °F x PSIG / 8,600 bar x °C

Industrial Applications

• Strong acids (except hydrofluoric acid)
• Solvents
• Hydrocarbons
• Water
• Steam
• Chlorine
• Cryogenics

Gasket sizes are based on ASME/ANSI Class 150lb dimensions. For Class 300lb gaskets, custom cut gaskets, or any sizing questions, please feel free to reach out to a specialist for assistance >>

Technical Specs for Garlock GYLON Style 3500 PTFE
