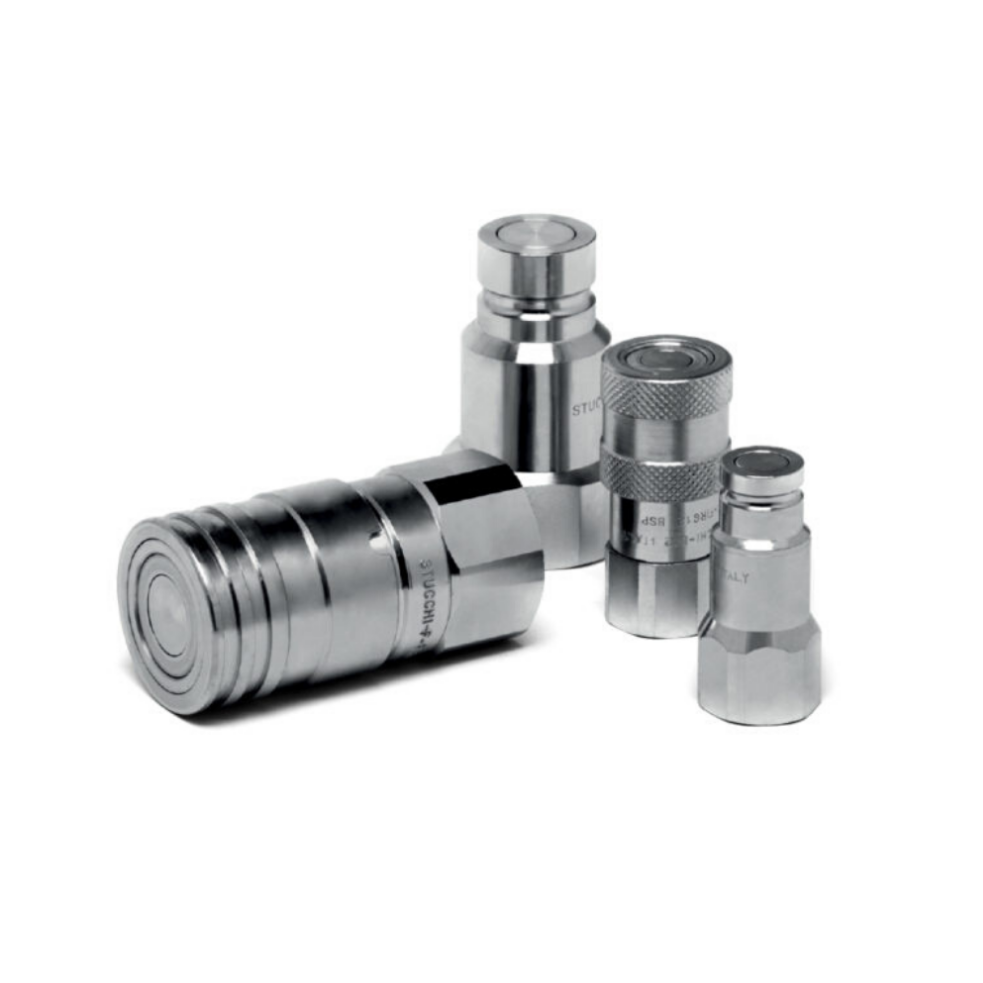

FIRG Series – Flat Face Couplings – BSP Thread Nicekicks Cheap Pice

Available in 1/4″- 2″, BSP Thread

Compatible with Parker FEM, Hansen FF, Hansen FD89, Snap-Tite 74, Faster 2FFI

Designed in 1983 used in many sectors of hydraulics, over time it has become the leading series for the realisation of the international standard ISO 16028 for couplings interchangeability. Thanks to the good performance and the many advantages it offers, even today the FIRG series is widely used and recognised by the major world manufacturers of hydraulic machines and equipment. It is used in all the applications where it is necessary to eliminate the loss of fluid and contamination of the circuit.

The FIRG Coupling comes in different models, click here for an overview of the specifications to find out which version matches your requirements best.

Can’t find the right specs in the sheet? Contact us today for a personalised quote.

Benefits:

• Easy cleaning of the flat faces that prevents the ingress of dirt during the coupling ensuring the cleaning of the circuit
• Irrelevant air inlet during coupling / decoupling
• 12 – 20 locking balls for optimum life
• Safe and easy to use

 Specifications:

• M=Male F=Female
• Interchange: ISO 16025
• Valving style: Flat Face
• Connection Under Pressure: Not Allowed
• Material / Treatment: High strength carbon steel
• Connection system: Push
• Sealing: Nitrile NBR
• Available sizes: From 1/4” to 2”
• Operating pressure: Up to 300 bar
• Locking mechanism: Locking ball, safety lock
• Temperature: -20°C / +100°C
• Flow rate: Up to 1000 l/min
• Available threads: BSP & SAE
