Escutcheon for FR-RES/QR Sprinklers, 1/2″ Adjustment, White Discount For Cheap

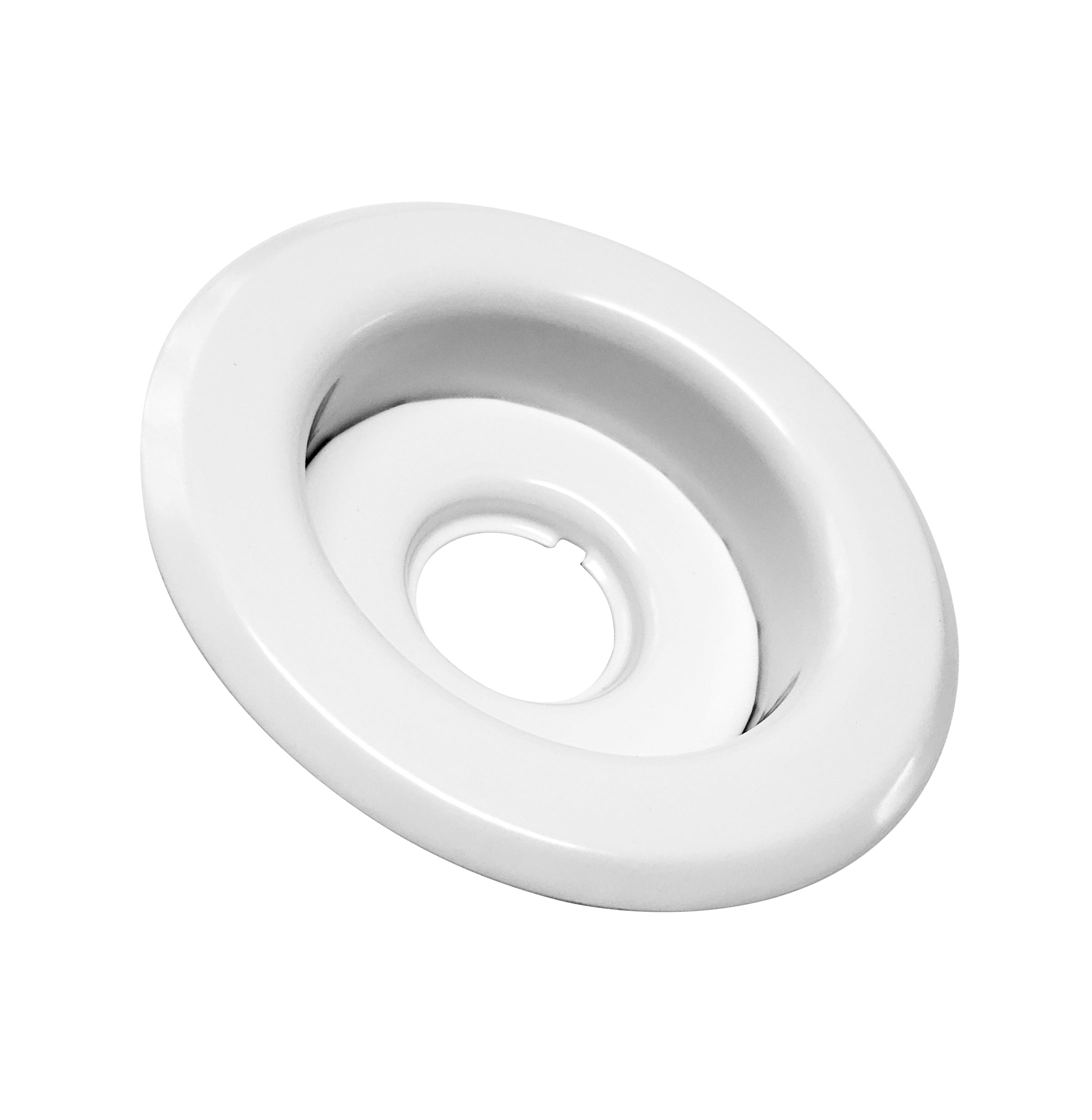

D1 Recessed (2-piece) Escutcheon for FR-RES/QR Sprinklers

Escutcheon for FR-RES/QR Sprinklers

Technical Data:

Approvals: UL, FM*

Outer Diameter: 2-61/64″ (75mm)

Depth: 59/64″ (23.4mm)

Thread: 1/2″ NPT

Adjustment: 1/2″ Recessed

Color: White

Compatible with following FR sprinkler heads:

90000-001-4011, 90000-001-4012, 90000-001-4021, 90000-001-4022 90000-001-4031, 90000-001-4032, 90000-001-4071, 90000-001-4072 90000-002-5011, 90000-002-5012, 90000-002-5013, 90000-002-5021 90000-002-5022, 90000-002-5023, 90000-002-5031, 90000-002-5032 90000-002-5033, 90000-002-5071, 90000-002-5072, 90000-002-5073

* Due to FM Approval Standard  3.2.13 by Class Number 2000, use in combination with a sprinkler head rated higher than 225°F is not approved by FM.
