Product Description

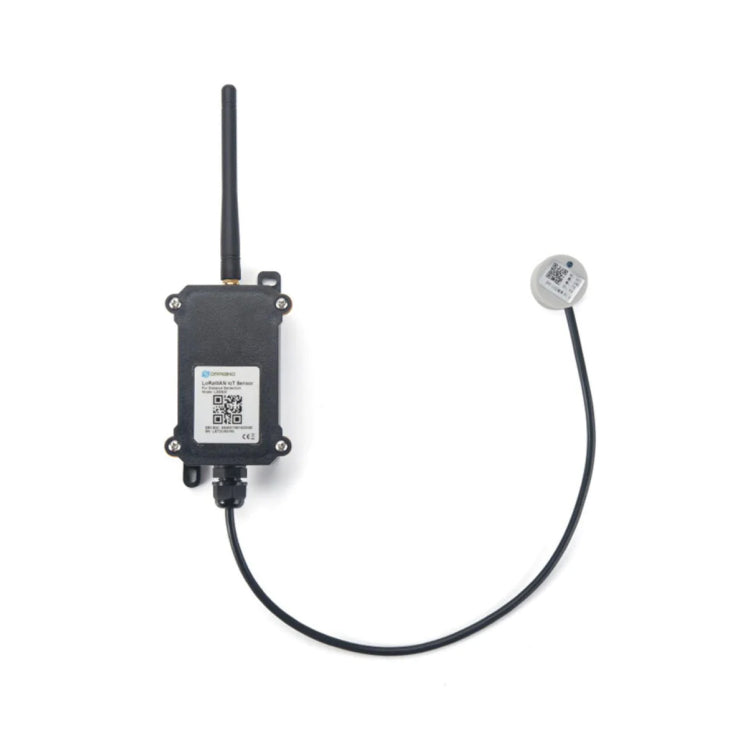

The Dragino LDDS20 is a LoRaWAN Ultrasonic Liquid Level Sensor designed for Internet of Things (IoT) solutions. This sensor uses a non-contact method to measure the height of liquid in a container, making it a safe and convenient solution for various applications. It is particularly suitable for measuring various liquids, including toxic substances, strong acids, strong alkalis, and pure liquids in high-temperature and high-pressure airtight containers.

The LDDS20 employs ultrasonic sensing technology for distance measurement and is characterized by its high accuracy. It offers an ultra-long range spread spectrum communication and high interference immunity while minimizing current consumption. The sensor is powered by an 8500mA Li-SOCI2 battery and is designed for long-term use, up to 10 years.

Key Features

• LoRaWAN 1.0.3 Class A Compatibility: Ensures reliable connectivity in LoRaWAN networks.
• Ultra-Low Power Consumption: Ideal for long-term deployments without frequent battery changes.
• Ultrasonic Liquid Level Measurement: Measures liquid levels without needing to contact the liquid, within a valid level range of 20mm to 2000mm.
• High Accuracy: Offers an accuracy of ±(5mm+S*0.5%) (S: Measure Value).
• Non-Contact Measurement: Safe and easy to use, especially in stringent conditions.
• Diverse Band Support: Compatible with multiple frequency bands including CN470, EU433, KR920, US915, EU868, AS923, AU915, IN865.
• AT Commands for Configuration: Allows easy parameter adjustments.
• IP66 Waterproof Enclosure: Suitable for challenging environmental conditions.
• Long Battery Life: 8500mAh battery capacity supports long-term use.
• Applications: Ideal for smart liquid control solutions and smart liquefied gas solutions.

Package Includes

• 1 x LDDS20 LoRaWAN Liquid Level Sensor.

Note

Ultrasonic coupling paste and Epoxy AB glue are required for installation but are not included in the default package due to shipping constraints. Users need to purchase these locally.

The LDDS20 is an advanced, reliable, and versatile solution for various liquid level measurement applications in the IoT domain​.
