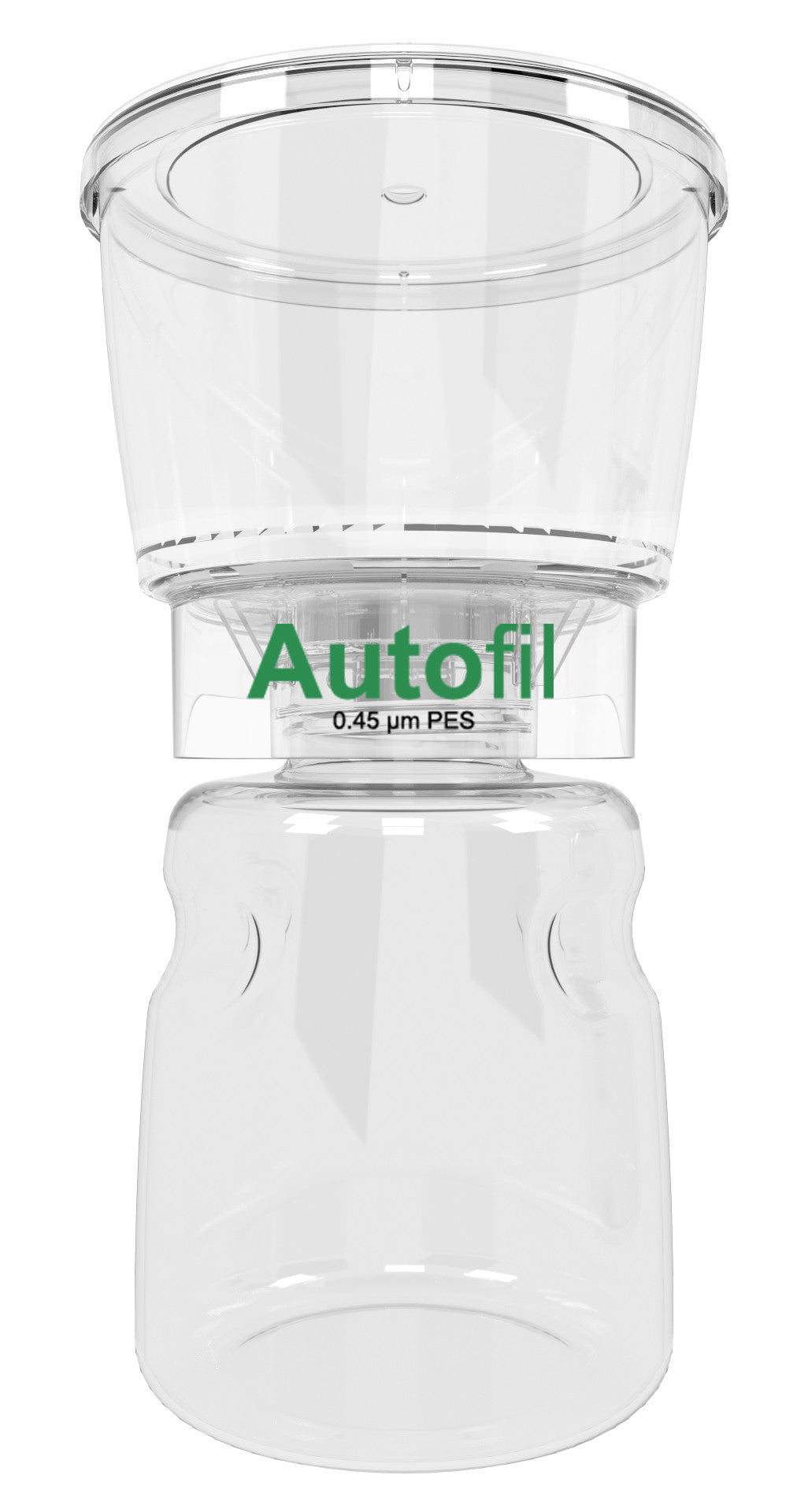

High Flow PES Bottle Top Filter

Autofil® 500ml is available as either a complete system or as a funnel only bottle-top vacuum filter. The patented next generation product comes with 3 different asymmetric PES membrane pore sizes ( .1μm, 0.2μm, or 0.45μm). Our membrane is low protein binding and surfactant-free.

The Autofil® system is designed for sterilization or clarification of aqueous laboratory fluids. The filters are Gamma sterilized 10^““6 in the USA.

An industry first, Foxx Life Sciences sells a stable, low-profile, patented optional pedestal base or a low cost ring-stand cradle. Each holder provides a stationary vacuum hose connection that makes set-up and use quick and efficient while preventing spills and tissue culture hood contamination. These holders also allow for hands-free operation of the filter unit. Foxx Life Sciences’ Autofil® is manufactured in ISO 13485 clean room in NA.

*Must be used with a vacuum source.
*All filters include standard hose barb vacuum connector.

Autofil Hardware sold separately.

Pedestal and Cradle Ring

Also Available on Amazon

Specifications

• Bottle Height: 4.42″ (112.3 mm)
• Funnel Height: 4.18″ (106.1 mm)
• Diameter(max): 4.56″ (115.9mm)
• Weight: .875lb (.614kg)
• Funnel Volume: 500ml
• Bottle Volume: 500ml
• Funnel/ Bottle Material: Polystyrene
• Cap Material: Polypropylene
• Filter Material: PES
• Filter Pore Size: .1μm
• Gamma sterilized 10^““6

Documentation

Autofil® Datasheet: (US)

Autofil® Datasheet: (A4)
