1 meter 7 x 7 mm Cable drag Chain Wire Carrier With End Fits Visa Payment

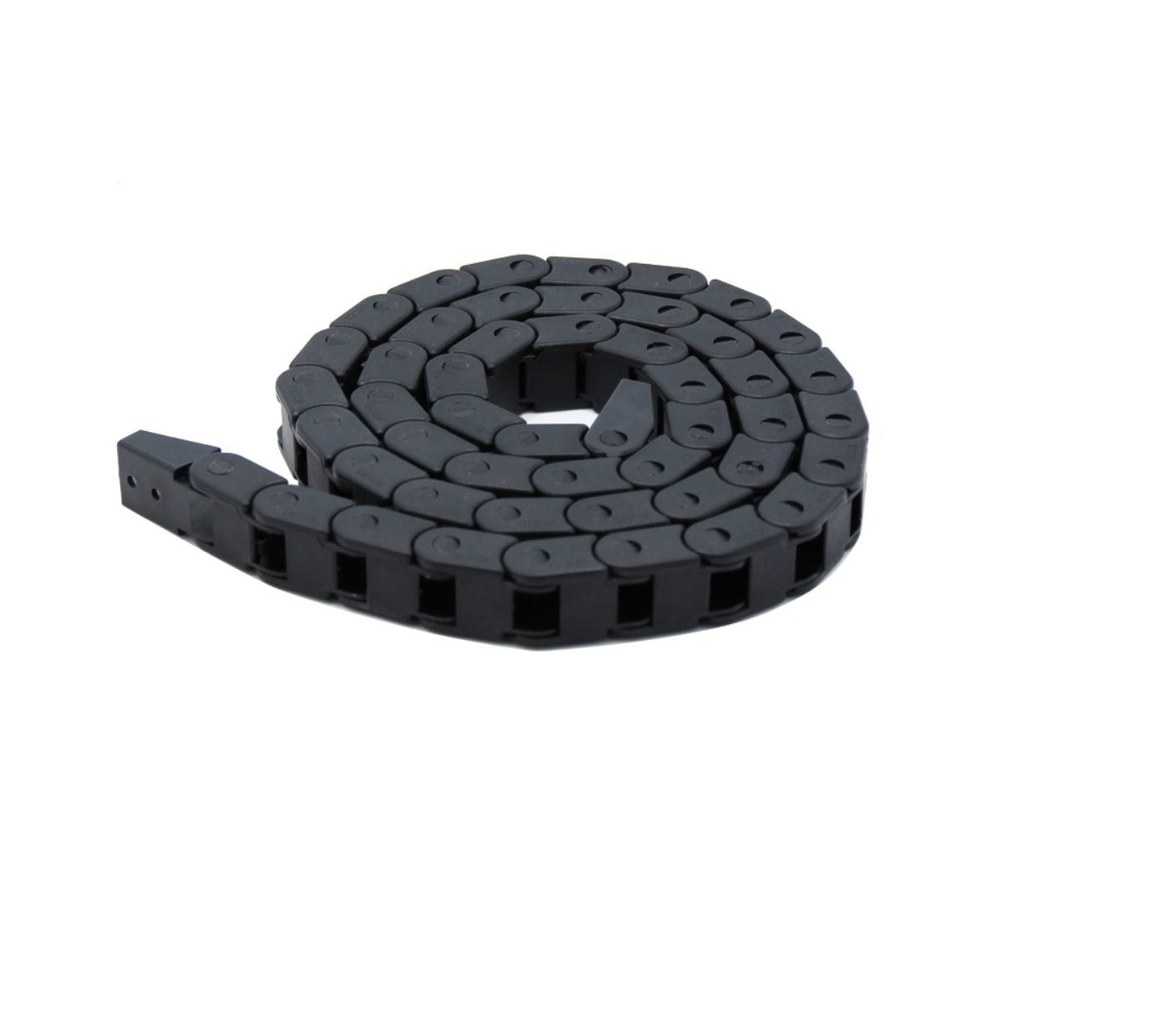

This is 7 x 7mm 1m Cable Drag Chain Wire Carrier. Cable drag chains are the umbilical cord of modern machines. Drag chains are convenient as well as a perfect way to route the wires of your CNC machines. They minimize downtime, protect, support and extend the service life of cables and hoses.

We offer Cable Drag Chains that are specially designed and manufactured to meet the needs of 3D Printers. Cable Drag Chains, that we provide, offer security & guide cables and hoses to all types of movable equipment in places where power is needed.

Note: The 7 x 7 is an Inner to inner free space available for Wire.

Features :

• Reinforced nylon with high pressure and tensile load, good toughness, high elasticity and abrasion resistance, flame retardant,
• high-temperature stable performance can be used outdoors, nylon towline content determines how much to use strength and
  wear resistance and noise level up and running.
• Resistance to: oil, salt, and a certain acid, alkali capacity.
• Speed and acceleration (specific speed, acceleration, as the case may be running).
• Long operating life.
• Chain shape like gram chain link by a large number of units composed of freely rotating between links.
• A unit chain around the chainplate and the upper and lower cover plates, towline can open each section, easy assembly and disassembly without threading, to the cable, tubing, pipe, pipe, etc. into the towline open the cover.

Specification:-

• Basic Technical Data –
• HI:7mm BI:7mm H:10mm BA:13mm.
• Pitch=16.7mm Link Per Meter=58.
• Max outer diameter of cable:5mm.
• Max horizontal hanging length:≥10000mm.
• One bid for 1pc of cable drag chain(wire carrier).

Packing Included:

1x Drag chain.
